CNC Lathe Center

Maximum turning diameter over bed 580 ㎜
Maximum machining diameter over pallet 300 ㎜
Maximum turning length 530 ㎜
Spindle speed range 100～4000 rpm
Spindle motor power 11 KW
Maximum number of turret 12 380mm T

A szálláslekérdezés elküldése

A termék bemutatása

cnc lathe machinery

Machine parameter

Item	parameter	unit
Maximum turning diameter over bed	580	㎜
Maximum machining diameter over pallet	300	㎜
Maximum turning length	530	㎜
Spindle speed range	100～4000	rpm
Spindle motor power	11	KW
Maximum number of turret	12 380mm	T
X-axis travel/Z-axis travel	230/560	㎜
X axis/Z axis minimum movement	0.001/0.001	㎜
X axis/Z axis rapid traverse speed	24/24	m/min
Tailstock sleeve model	5#	MT
Tailstock sleeve stroke	100	mm
X axis/Z axis repeat positioning accuracy	≤0.003/0.004	㎜
Surface roughness	≤0.63	um
Spindle bore	Φ52	㎜
bevel angle	30	
Dimensions (length X width X height)	*284016501670*	㎜
Machine Net Weight	4800	kg

1) This cnc lathe center can be used for turning, drilling, boring, tapping and surface turning;

2) The materials that this machine can process are steel, iron, aluminum alloy, copper and copper alloy and other metals, and the general surface hardness is within HRC30;

3) Graphite, engineering plastics, bakelite, wood and other non-metallic materials are not suitable for processing by this machine tool;

4) This machine tool is not suitable for operation in explosive environments.

2.2 Working limit:

1) The maximum turning workpiece diameter is 300mm;

2) Maximum processing stroke: X axis: 230mm Z axis: 560mm;

3) The maximum processing length of the workpiece: 530mm

4) 45 degree inclined bed design

cnc slant bed lathe

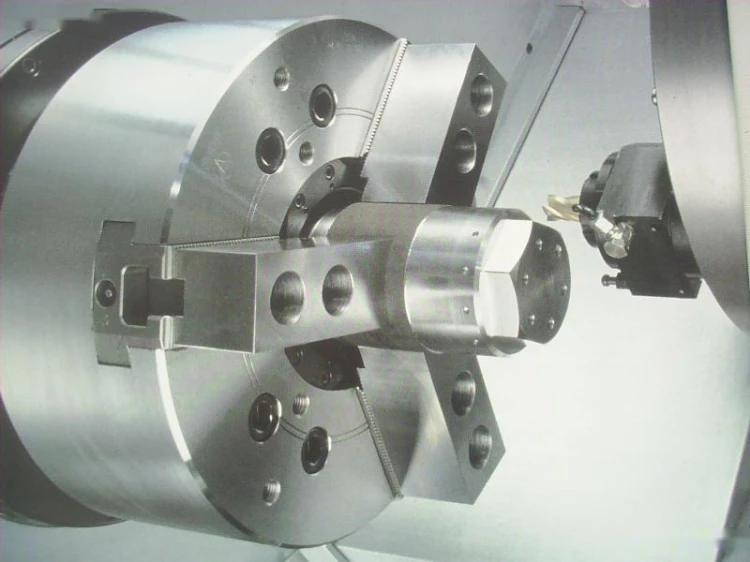

hydraulic chuck

FunctionFunctions
+ cnc lathe center 360-degree arbitrary indexing of the spindle, brake setting function + turning, drilling, and contour processing
＋End face and side drilling and tapping processing＋Cylinder and coordinate interpolation function
+ Y-axis control has precise forming milling capability + Supports C-axis (spindle > X/Y/Z/B-axis interpolation function, realizing multi-axis linkage

LATHE machine
